Helmholtz Tester

Resonance Detector and Rapid Tester

Detects a magnetic resonant receiver placed on the test platform inside the RF Helmholtz coil. It uses a VNA to detect the presence of a resonance within a pre-defined frequency range. Upon finding a resonance, the apparatus will report the resonant frequency, resonant quality factor, and the dipole volume, which characterizes the coupling strength to the surrounding magnetic field. Needle probes are included which can provide a DC bias to nonlinear components on the receiver.

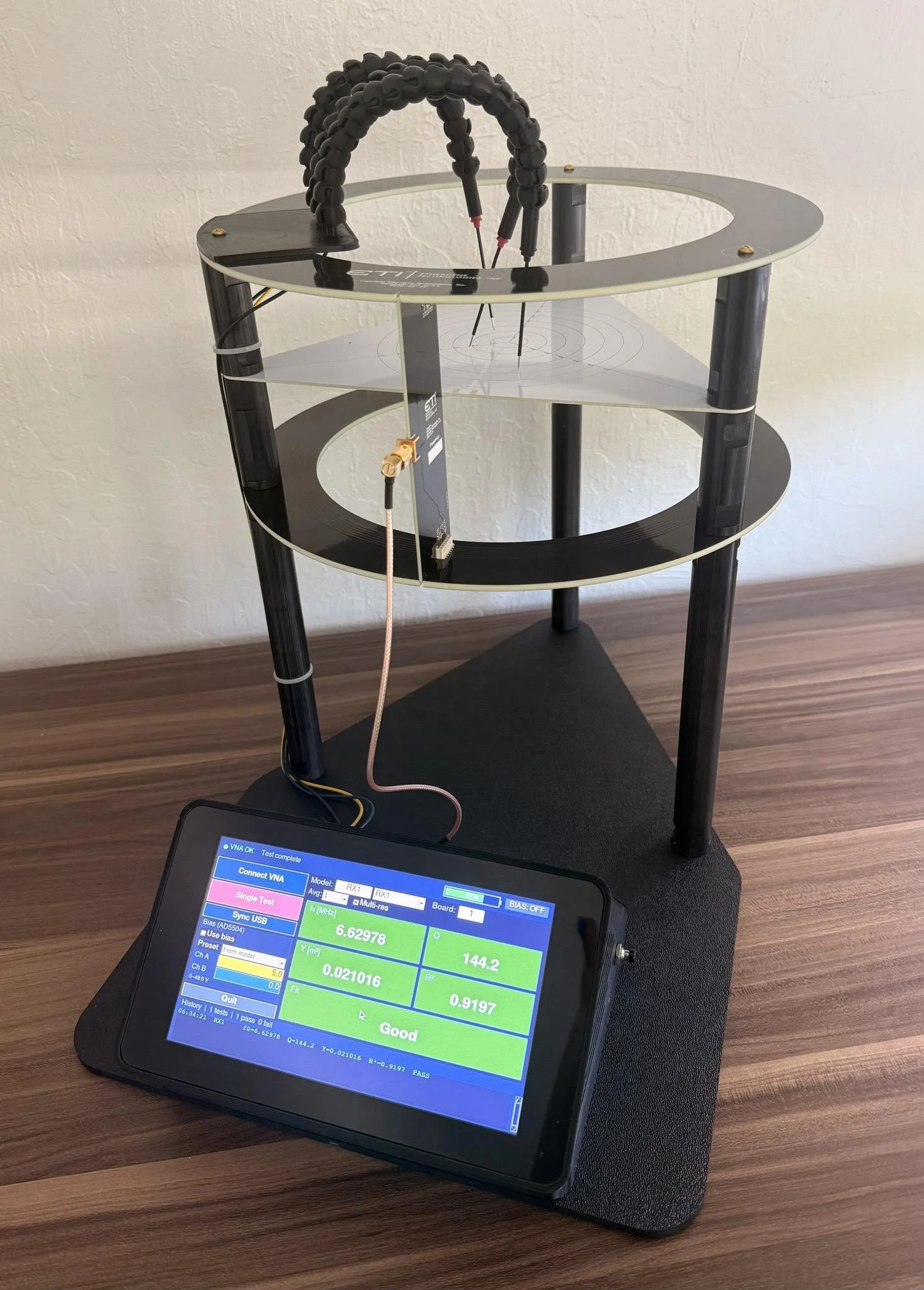

A computer screen displays test results with green and blue background, showing measurements and quality indicators. Above it, a metal and plastic testing apparatus with three probes connected to wires is positioned on a black stand against a white wall.

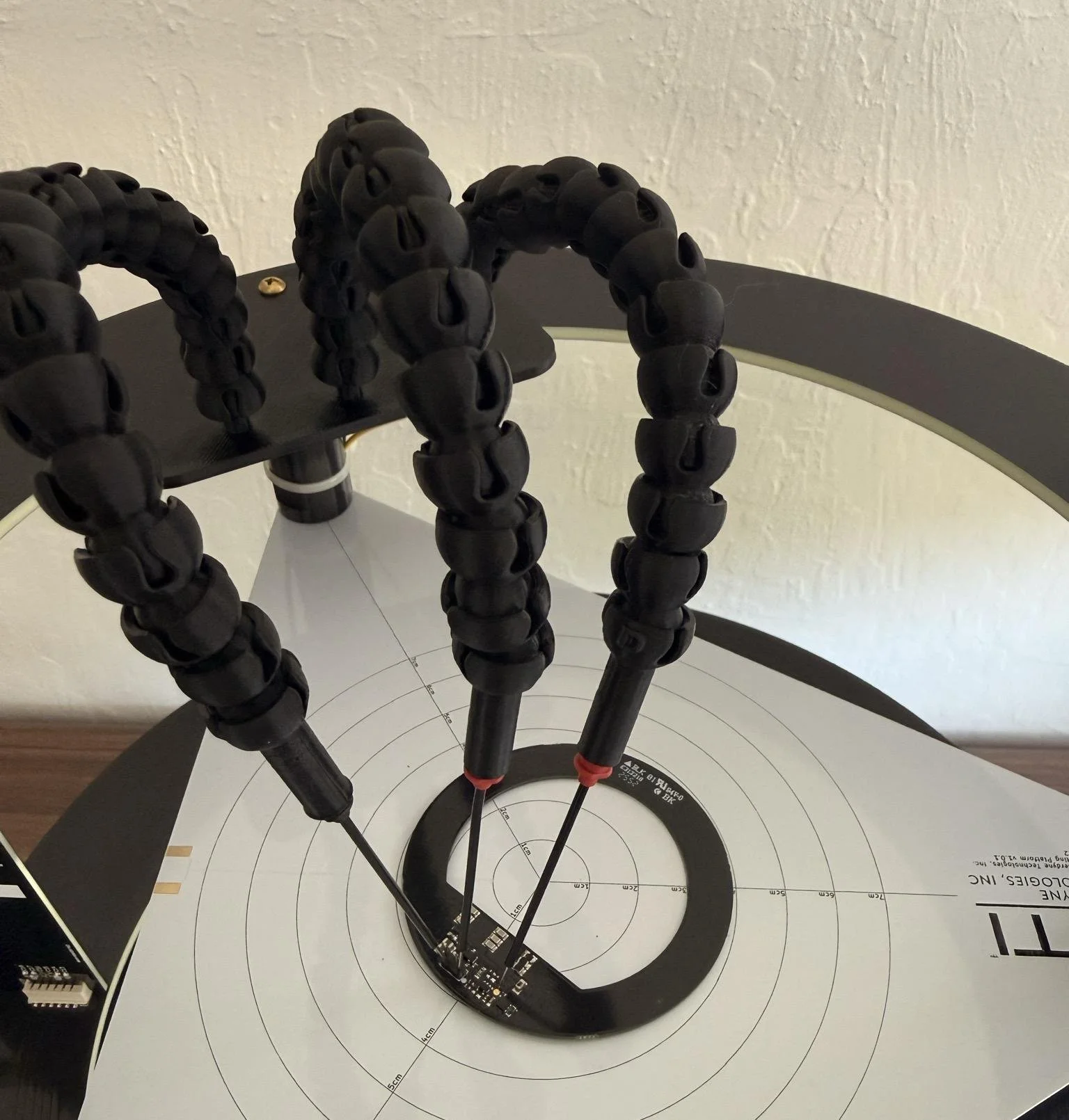

Three black flexible posts with a coiled design inserted into a shooting target with concentric circles on a white background.

Specifications

  • Power

    USB-C 5V 3A

  • Helmholtz Dimensions

    Coil center-to-center diameter: 243.2mm

    Coil separation: 121.6mm

    Outer diameter: 300mm

  • Frequency measurement range:

    5MHz - 9MHz (can be customized upon request)

  • Data logging

    csv file, data transfer over USB-C

  • DC Bias

    Two independent channels

    0V - 48V

    100kΩ series output impedance

  • Apparatus Dimensions

    Base is 30.5cm wide and 43.5cm long

    34cm tall without the probes

Would you like to purchase our Helmholtz Tester?
